Movement

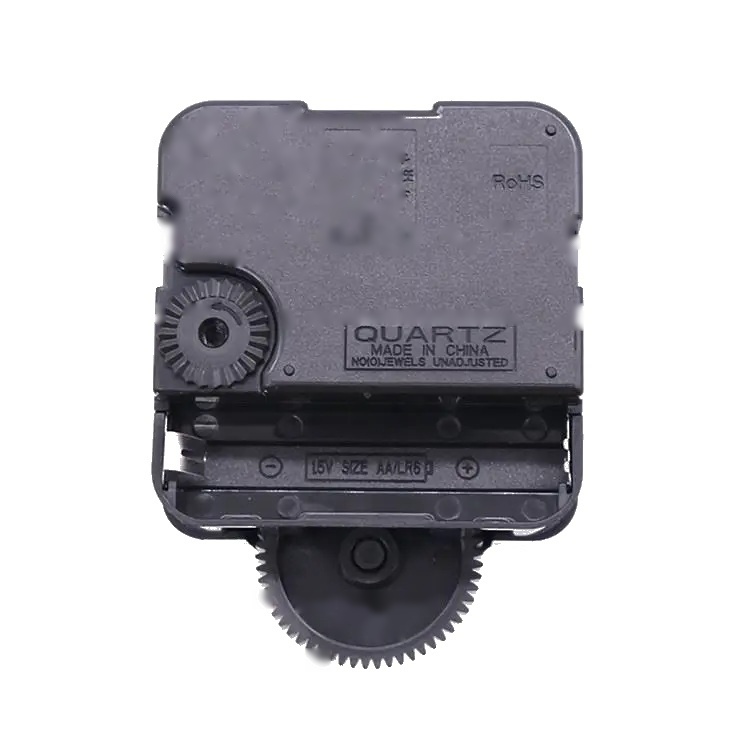

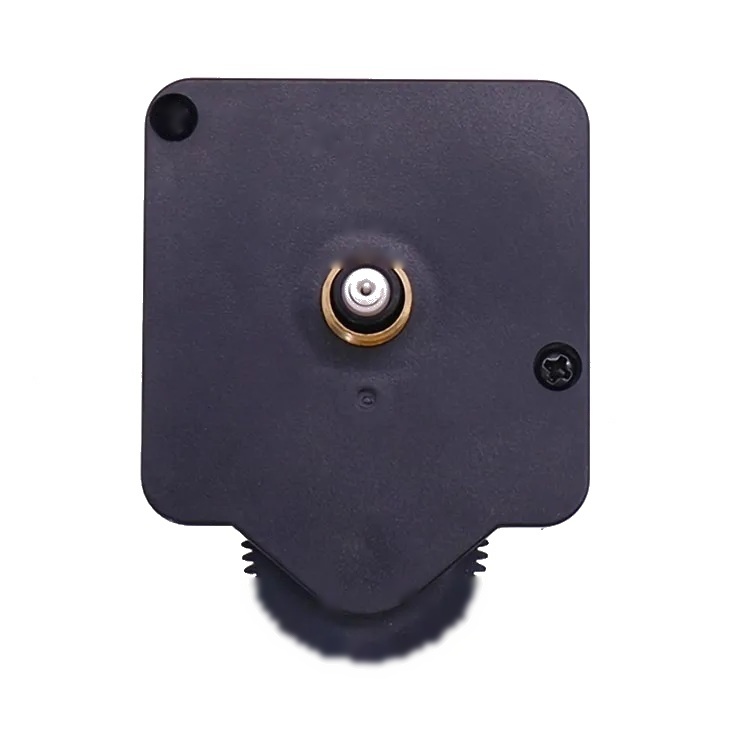

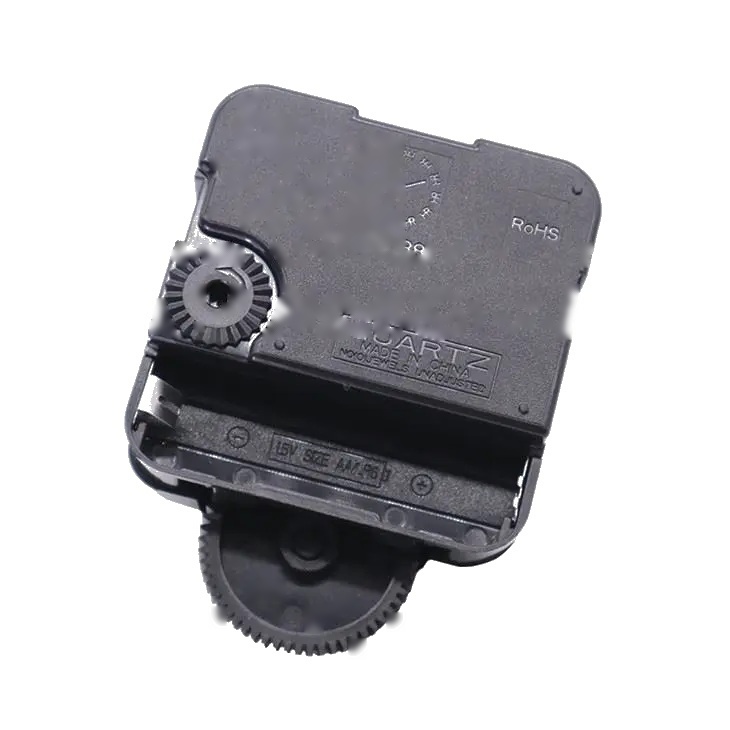

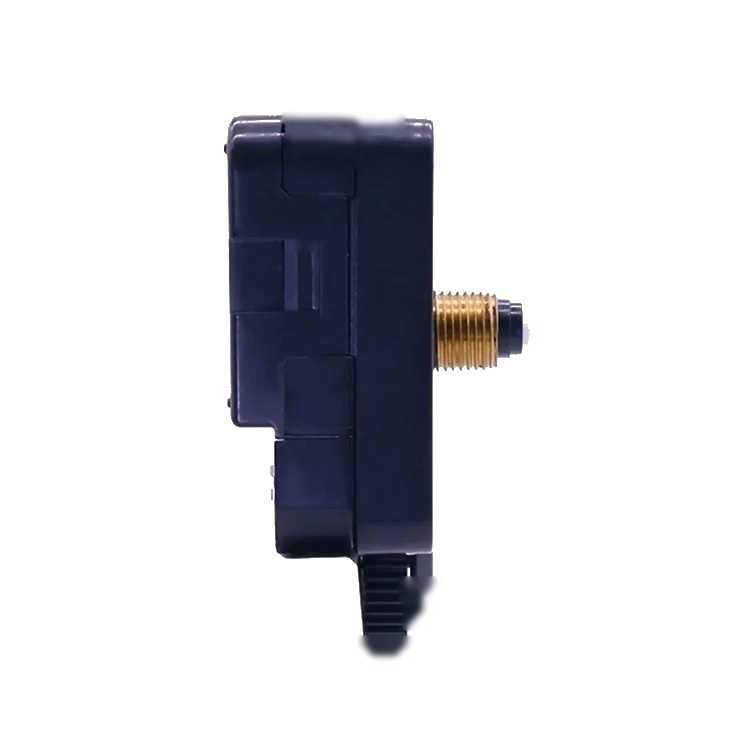

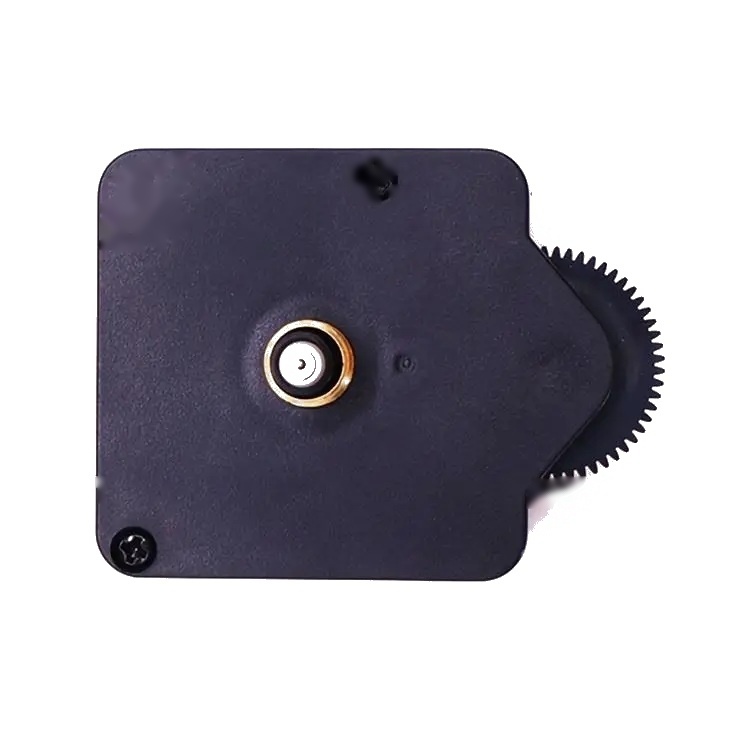

Rohs CE Quartz Tide Clock Movements

Rohs CE Quartz Tide Clock Movements for OEM wall clocks, replacement programs, repair kits, and craft clock production. Model: 1688 tide clock movement only drive 2pcs clock hands. Size: 56*56*16. CE/RoHS compliance available.

Model

1688 tide clock movement only drive 2pcs clock hands

Size

56*56*16

Product Library

Reference Product Library

Category Path

Products > Tide Clock Movement

• Rohs CE Quartz Tide Clock Movement tide and time clock movement for tide clock

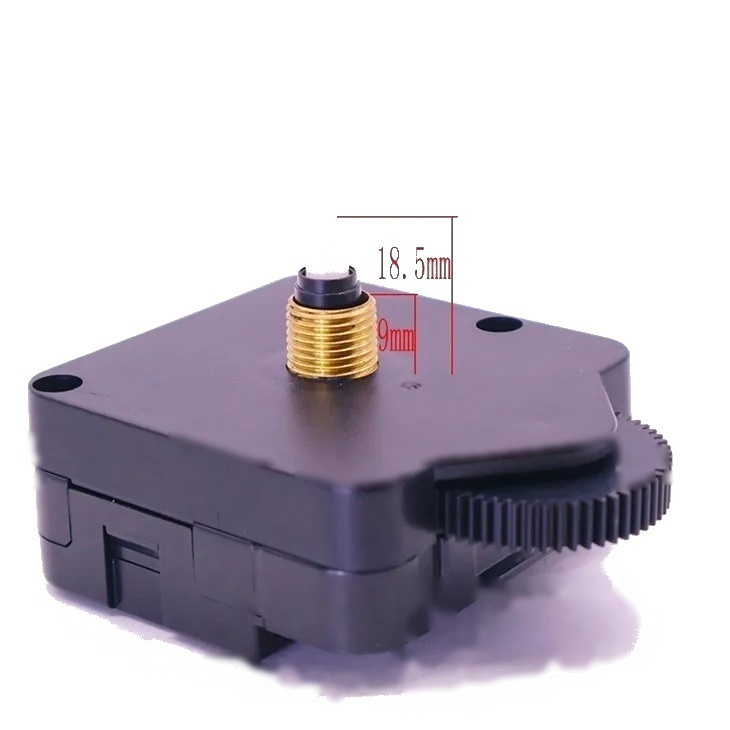

• 1) tide movement axial length(mm):18.5MM
• 2) Packing:500pcs/ctn, with poly foam tray inside
• 3).We can supply tide movement with CE and RoHs certificate
• 4).ABS material
• 6) Model 1688 tide clock movement only drive 2pcs clock hands(Hour hands+second hands)
• Product Information
• Tide movement shaft length: 18.5mm
• Product size: 56*56*16.2mm
• Packing quantity:5*100PCS/Box
• Carton Size:40*36*38.5CM
• Product Descriptiom: Tide Caliber one week is 12 hour 25 minutes and 15 seconds
• Product are second-class movement,life expectancy 8 to 10 years,all passed CE ROHS certification
• Crystal frequency: 31.658KHZ, average daily difference: ± 1 sec/day at 1.5V, 24℃
• Working voltage: 1.25V to 1.7V
• Operating temperatur:-10 ℃ to 50 ℃
• Weight: Approximately 30g/PCS
• Seconf hand torque output: ≥ 1.5gf-cm(1.5V)
• Minute hand torque output: ≥ 30gf-cm(1.5V)
• Tidal function pin （This tide movement has an additional time function than the other series of tides）
• Power ：1.5V/AA（5）
• Battery life: 1 years
