Size / dimensions: 56 * 56 * 20mm
Movement

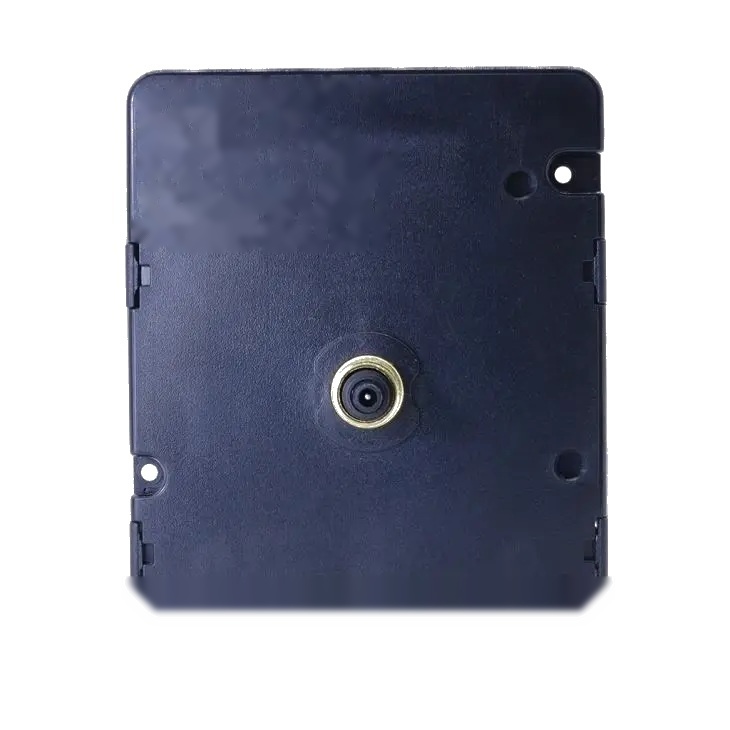

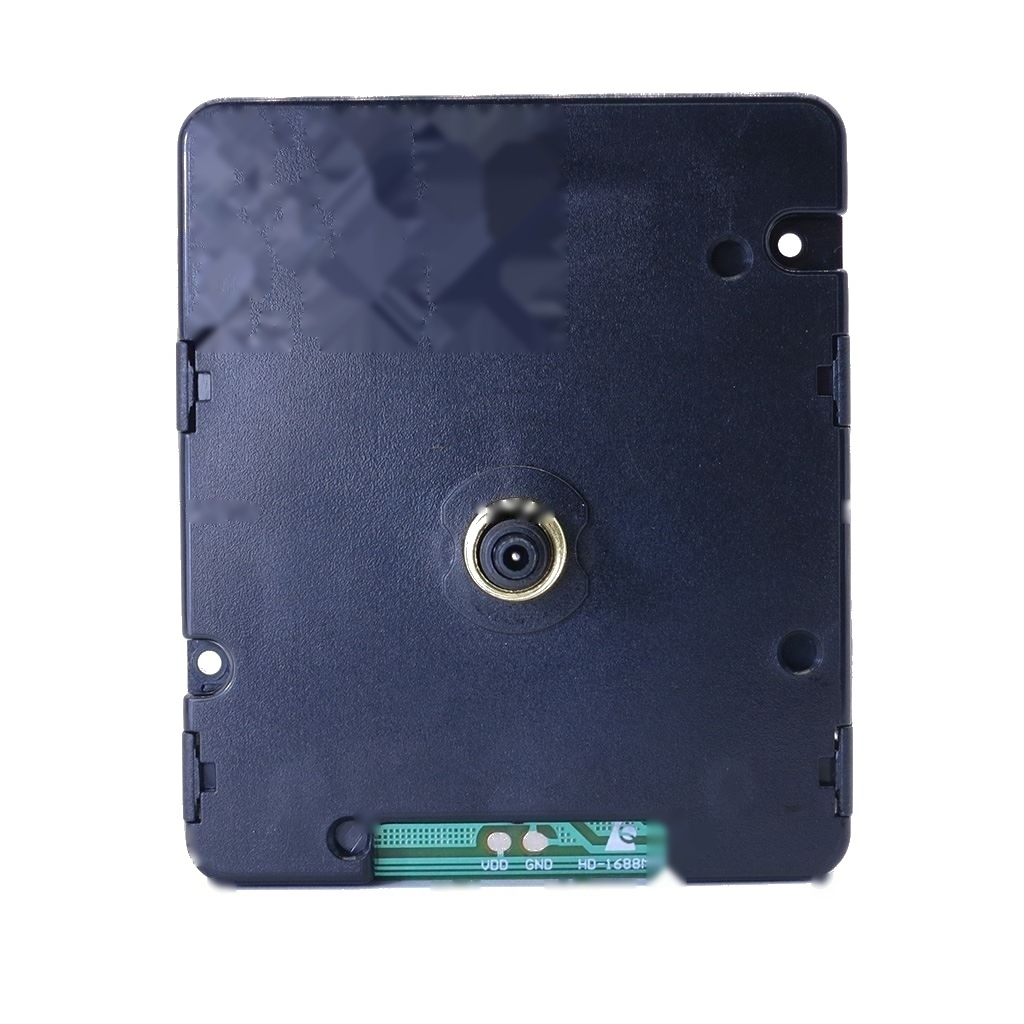

HD1688-17mm WWVB Radio Sweep Clock Insert
HD1688-17mm WWVB Radio Sweep Clock Insert for OEM wall clocks, replacement programs, repair kits, and craft clock production. Model: HD1688-17. Size: 56 * 56 * 20mm. Shaft length: 17mm. Material: plastic.
- Model
- HD1688-17
- Size
- 56 * 56 * 20mm
- Product Library
- Reference Product Library
- Category Path
- Products > Radio Controlled Clock Movement
Radio Controlled Clock MovementOEM availableWholesale supply
- Model Number: HD1688-17
- Version: WWVB sweep radio clock movement
- Shaft length: 17mm
- Shape: square
- Styly: sweep
- Material: plastic
- Power: battery
- Color: black
- Production piciture:
- Production Detail Description:
- Operating temperature: 0℃~+55 ℃
- Storage temperature:-20℃~+70 ℃
- Current consumption normal: 175 μA
- receiving time: 3~12 min
- Receiving current: ≤100 μA
- Setting time after reception: Max. 5'10''
- Operating noise(1.5V): less than 35 dB
- Sensitivity: ≤100 μV/m
- Second torque(1.5V): 150 μNm
- Minute torque(1.5V): 600 μNm
- WWVB Radio Sweep Clock Insert
- FAQ
- Q. What is HD1688-17mm WWVB Radio Sweep Clock Insert the MOQ ?
- A. 10 pcs for stock items, small quantity also acceptable
- Q.What is the production time ?
- A. Order quantity less than 10K, around 15 days to prepare
- 25 days required if quantity over 10k
For quotation
Share this model page with your quantity, destination country, packaging request, and any matching sample photos. We will confirm compatible options before quoting.
