Size / dimensions: 19 mm
Movement

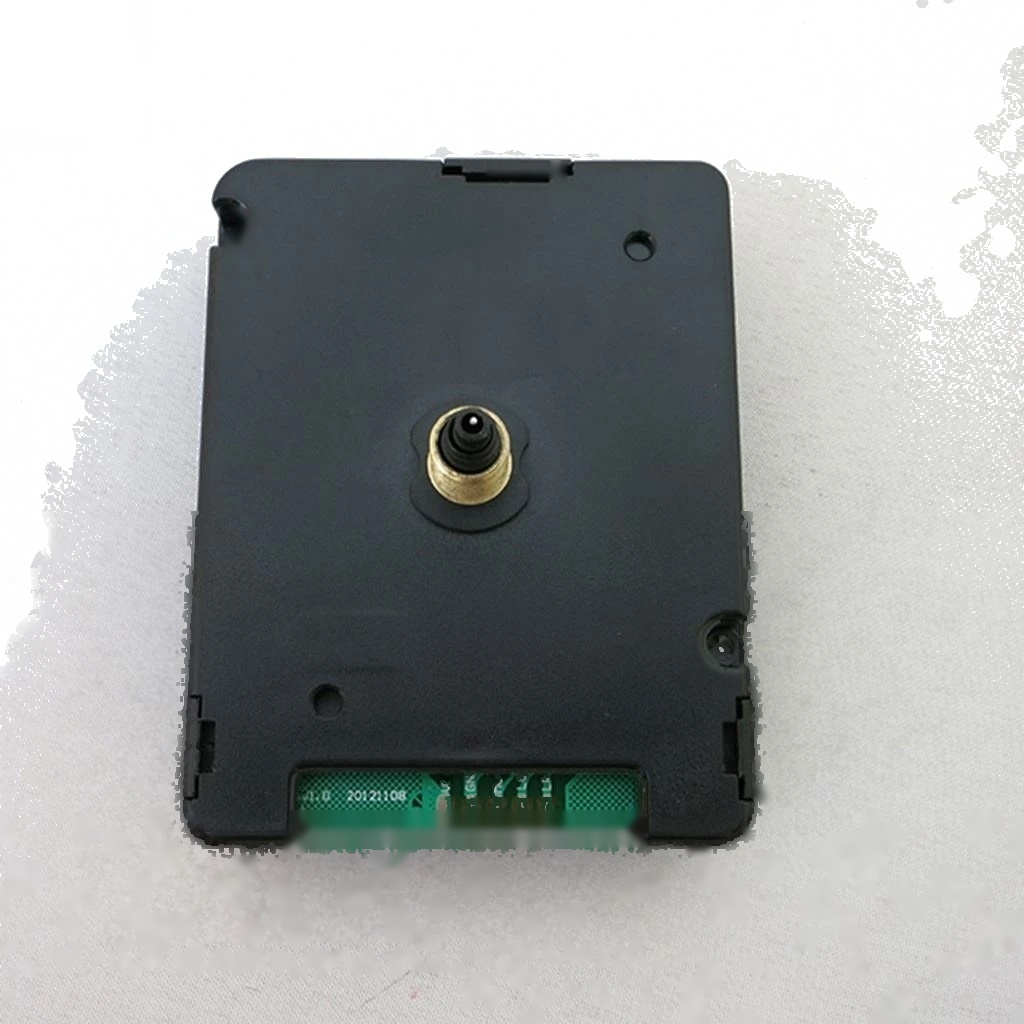

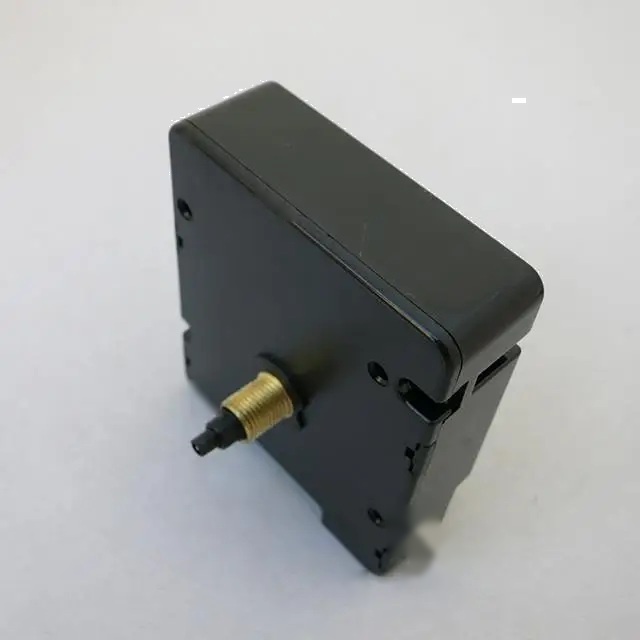

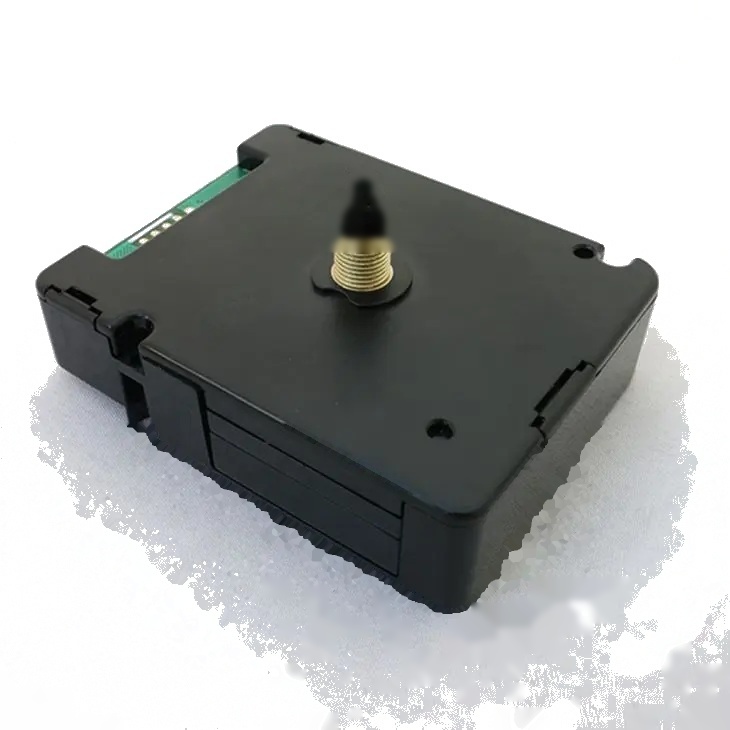

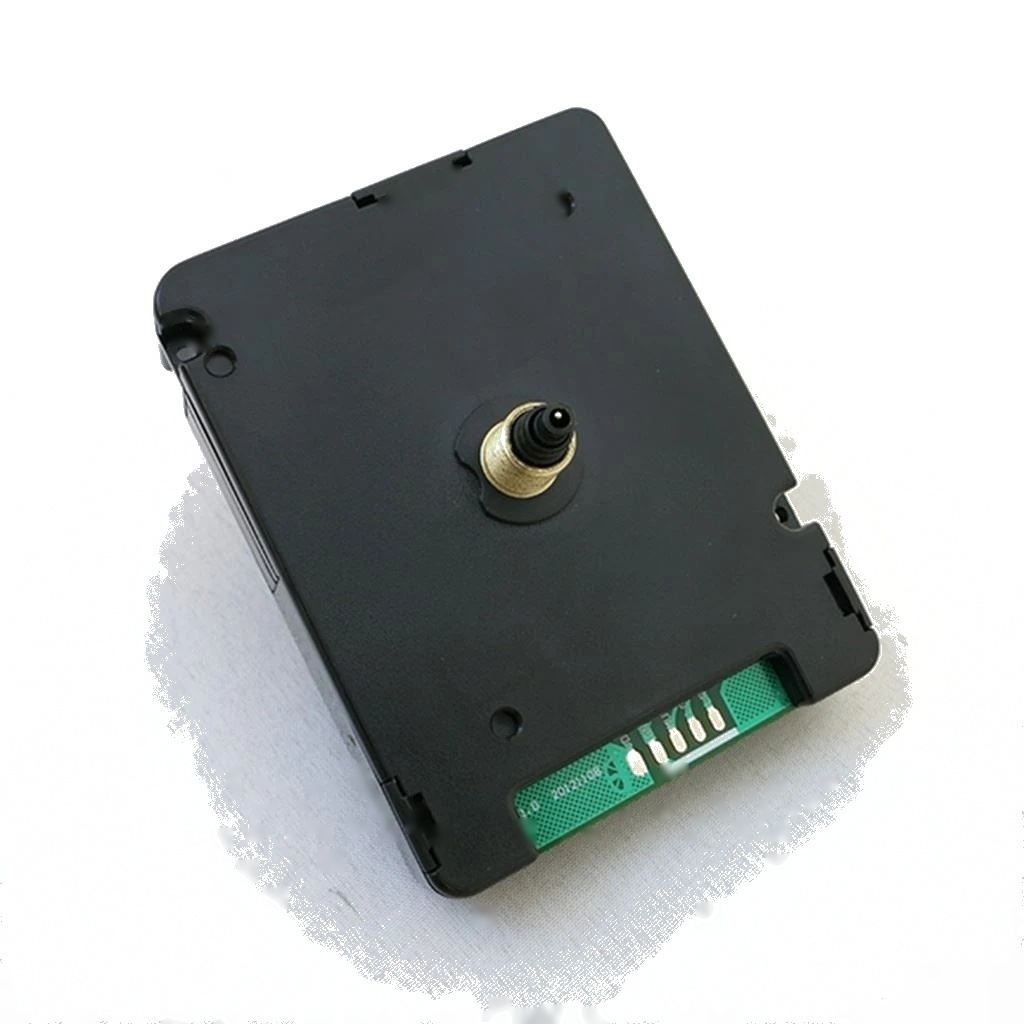

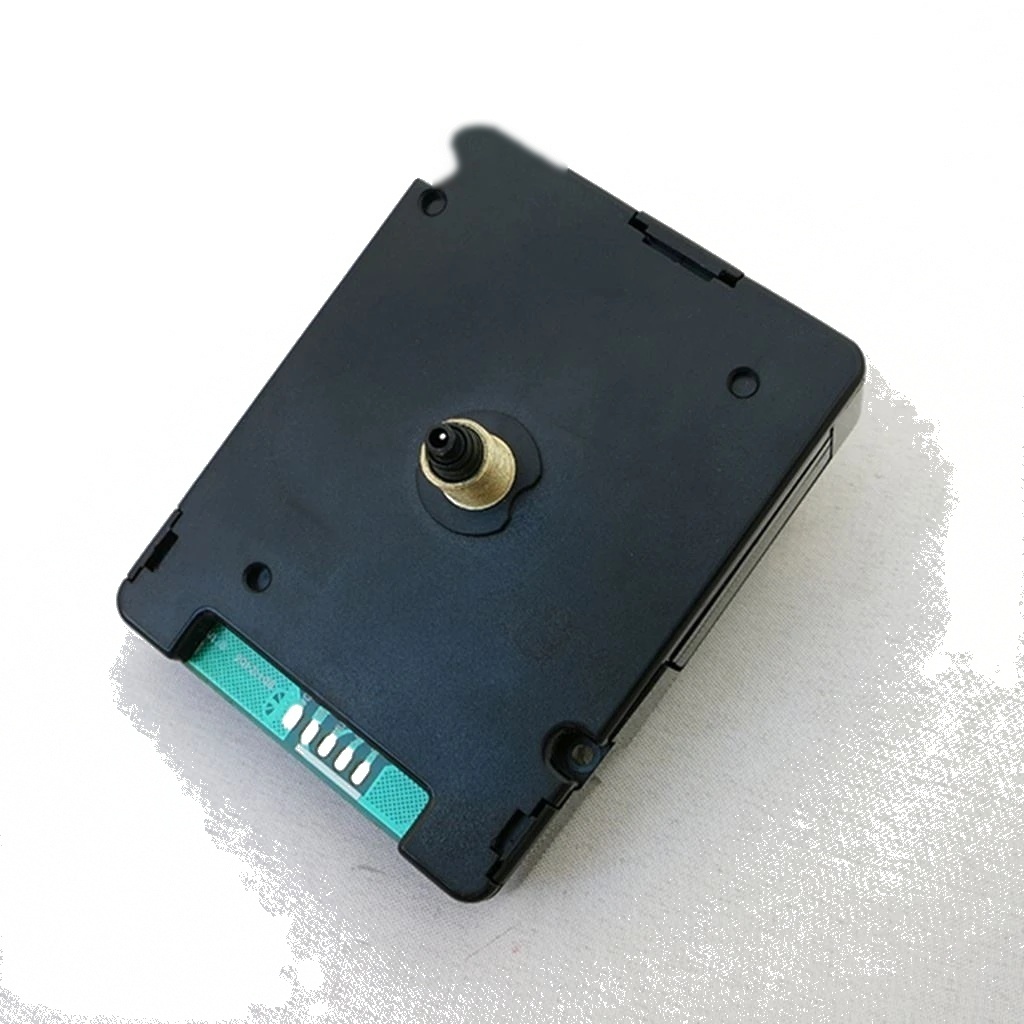

HD1688 17mm DCF Radio Controlled Clock Movement
HD1688 17mm DCF Radio Controlled Clock Movement for OEM wall clocks, replacement programs, repair kits, and craft clock production. Model: HD1688. Size: 19 mm.
- Model
- HD1688
- Size
- 19 mm
- Product Library
- Reference Product Library
- Category Path
- Products > Radio Controlled Clock Movement
Radio Controlled Clock MovementOEM availableWholesale supply
- DCF model waves clock movement size: 72 * 56 * 19 mm, 6 22:00 to stop every night to the next automatically open reception, waves clock movement crystal frequency: 32.768 KHz daily average poor: plus or minus 1 SEC/day is called a second level movement, receive frequency: 77.5 KHz, trusted time: 3-12 min, ferrite ma
- Battery size: LR6/AA
- Battery life: Approx one year
- Average time keeping:+-1sec/day at 1.5V
- Operating voltage: DC1.25V to 1.7V
- Operating temperature:-10 ° C~55 ° C
- Storage temperature:-15 ℃ ~50 ℃
- Current consumption normal: 190uA
- Receiving time: 4~12min
- Receiving current: ≤ 120uA
- Torque: over 180 μ Nm
