Size / dimensions: 56*56*19mm
Movement

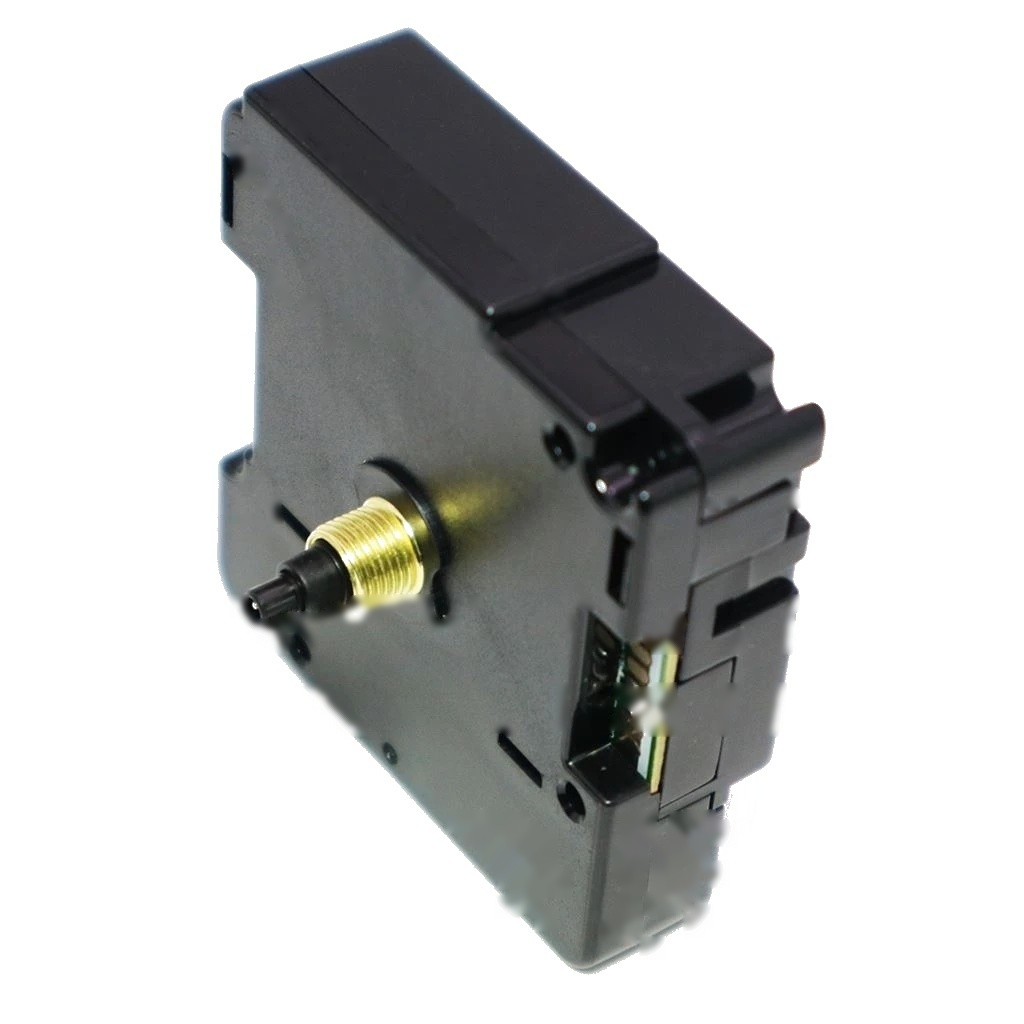

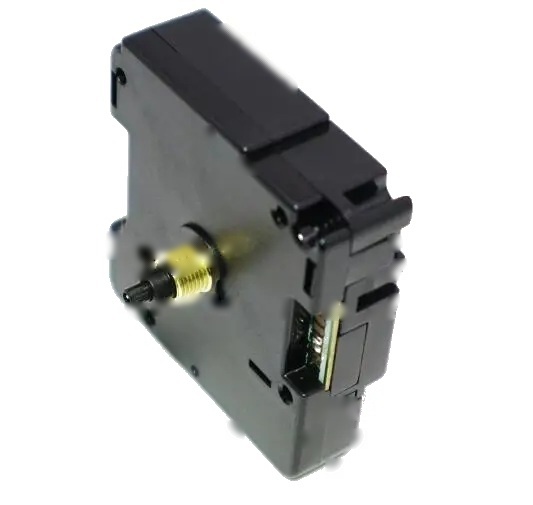

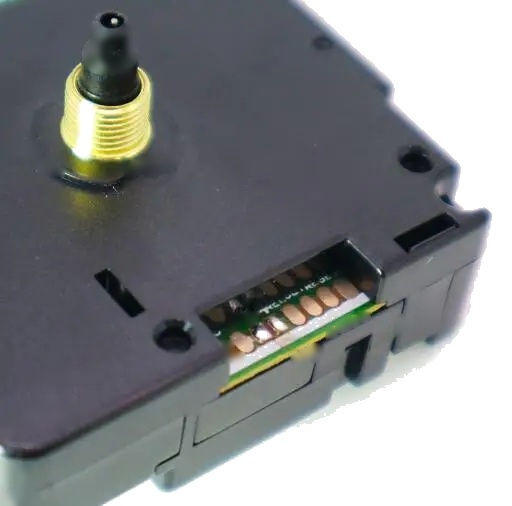

HD1688 14.5 mm DCF Radio Controlled Clock Movement
HD1688 14.5 mm DCF Radio Controlled Clock Movement for OEM wall clocks, replacement programs, repair kits, and craft clock production. Model: HD1688-14 RC Clock Movement. Size: 56*56*19mm. Shaft length: 14mm.
- Model
- HD1688-14 RC Clock Movement
- Size
- 56*56*19mm
- Product Library
- Reference Product Library
- Category Path
- Products > Radio Controlled Clock Movement
Radio Controlled Clock MovementOEM availableWholesale supply
- Name
- Value
- Model: HD1688-14 RC Clock Movement
- Size: 56*56*19mm
- Shaft Length: 14mm
- Battery Size: LR6/AA
- Battery Life: Approx one year
- Average Time Keeping:+-1sec/day at 1.5V
- Operating Voltage: DC1.25V to 1.7V
- Operating Temperature: 10°C~55°C
- Storage Temperature: 15 ℃ ~50 ℃
- Current Consumption Normal: 180uA
- Receiving Time: 4~12min
- Receiving Current: ≤120uA
- Torque: over 180 μNm
- Product Properties
- model:
- HD1688-14DCF

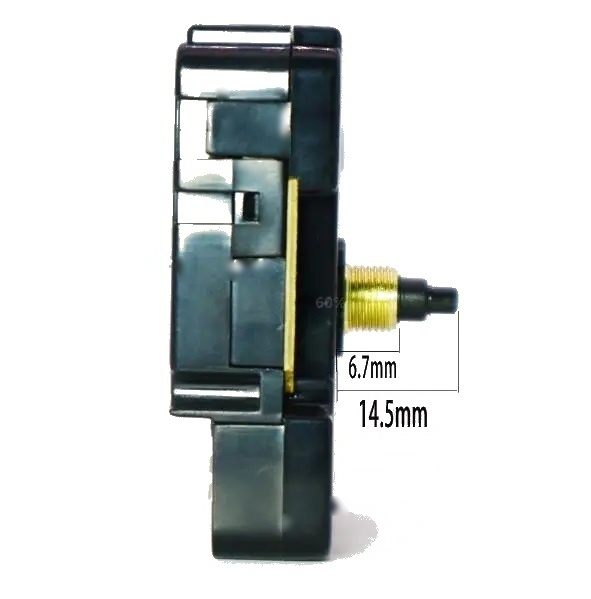

- The shaft Length of Movement: 14.5mm
- Screw thread length: 6.7mm,Fit about 3 mm thickness clock panel
- With golden hex nut, golden metal washer, black rubber washer
- MOQ:
- 100pcs
- Receiving Frequency:77.5KHz
- Battery Size:AA/LR6(Alkaline)
- Battery Life:≥2 Year
- Operating Voltage:1.25-1.7V
- Quartz Accuracy:±1s/d
For quotation
Share this model page with your quantity, destination country, packaging request, and any matching sample photos. We will confirm compatible options before quoting.
Same category
Related models
Get pricing
Send an inquiry for this model.
Include quantity, destination country, preferred finish, shaft length, hand length, or fit-up diameter when possible. We will reply with MOQ, price, sample options, and lead time.
