Movement

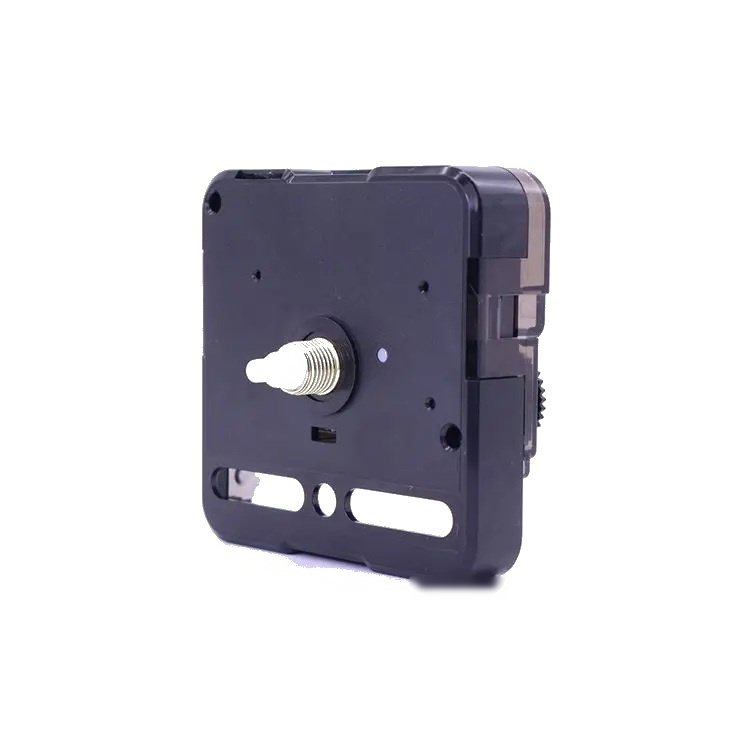

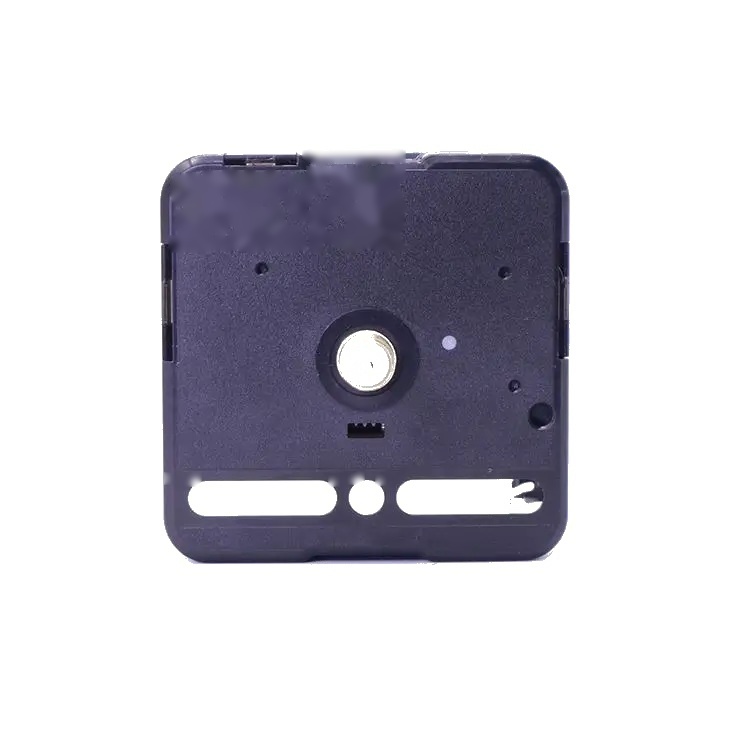

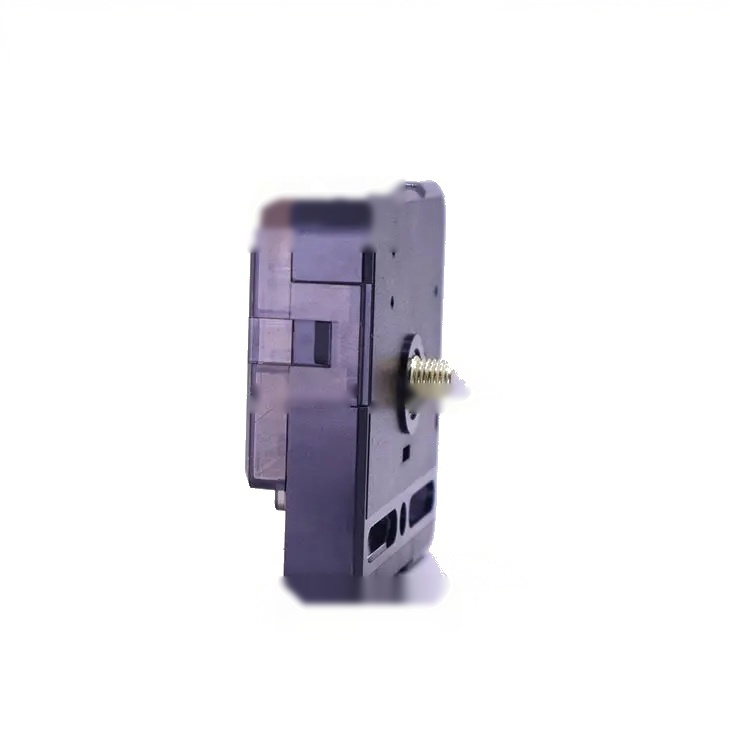

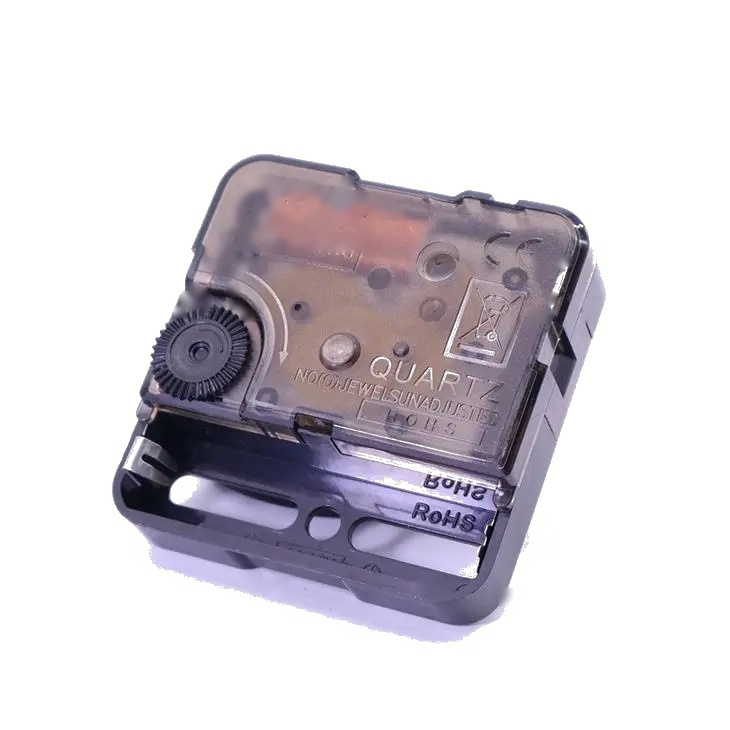

Clock Mechanical Scanning Movement

Clock Mechanical Scanning Movement for OEM wall clocks, replacement programs, repair kits, and craft clock production. Model: 1688. Size: 220mm clock hands or. CE/RoHS compliance available.

Model

1688

Size

220mm clock hands or

Product Library

Reference Product Library

Category Path

Products > Clock Mechanical

• 1688 short-shaft sweep clock movement with one second precisionmovement, life expectancy 5-7 years, all through the CE, ROHS certification, the crystal frequency: 32.768KHz, average day difference: ± 1
• second/day at1.5v, 24 ℃, the minute hand torsion of clock
• movement ≥ 30gf-cm (can be equipped with 220mm clock hands or
• so). (can be equipped with clock hands,The longest of clock hands< 220mm)
• 1688 sweep clock movement size
• Movement shaft length: 13.5mm
• Movement size: 56 * 56 * 16.2mm
• Packing quantity: 5 * 100PCS/box
• Movement weight: about 24g/PCS
• Packing: Styrofoam+carton
• Carton size: 38 * 37 * 39.5CM
• Movement voltage: 1.3 ~ 1.7V
• Battery Specifications: AA (No. 5)
• Battery life: 12 months
• Nickel iron power consumption: 230uA at 1.5
