Size / dimensions: 8mm
Movement

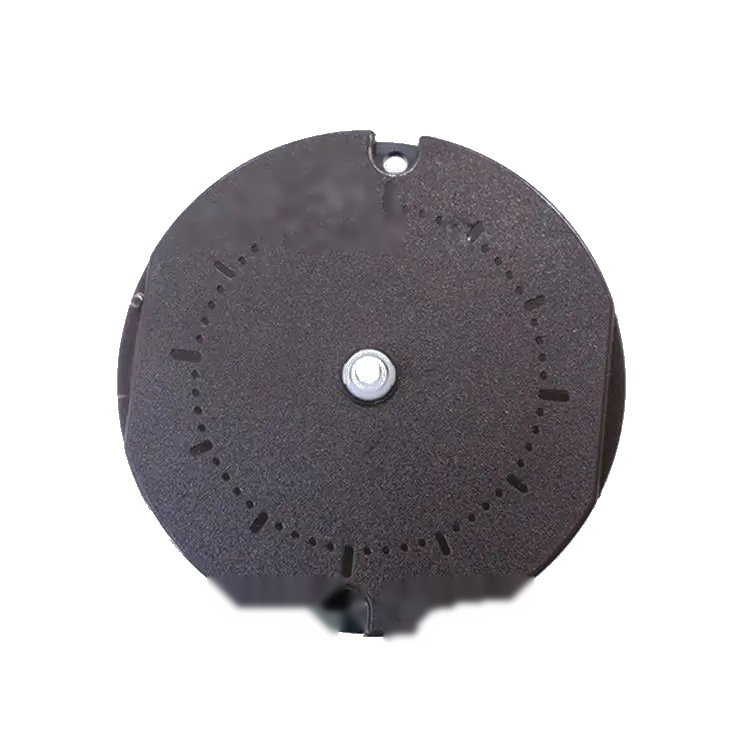

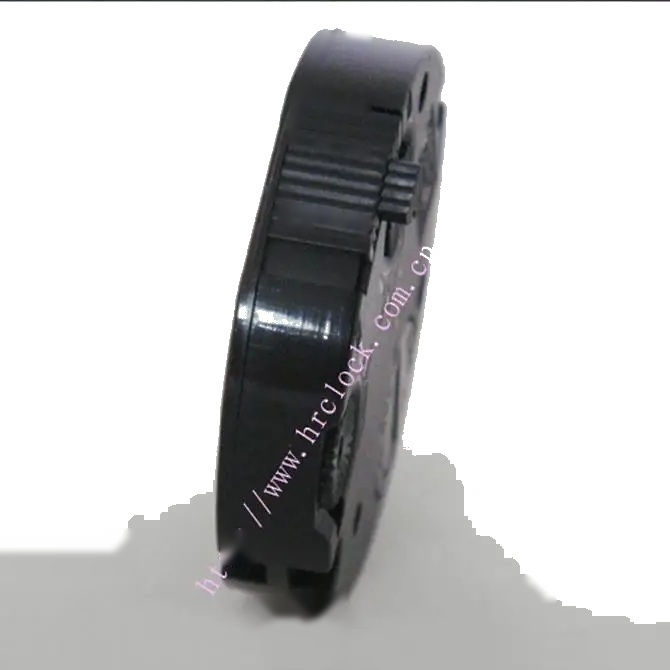

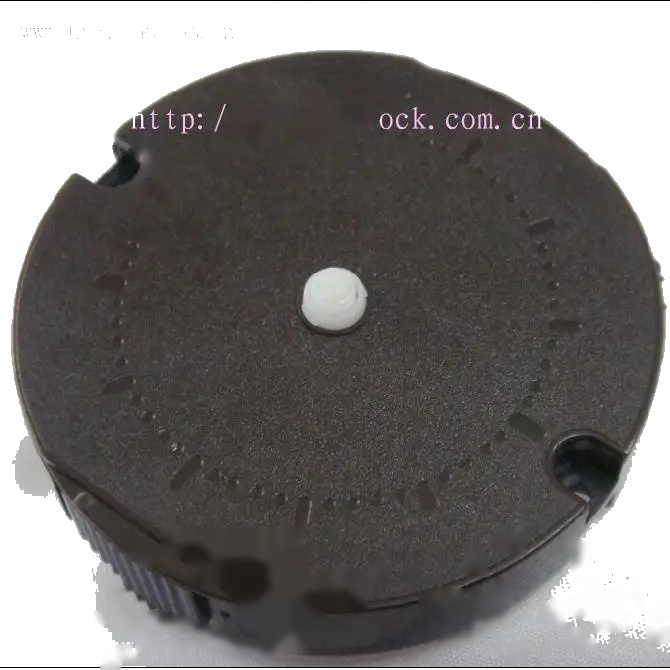

Small Round Alarm Clock Movement
Small Round Alarm Clock Movement for OEM wall clocks, replacement programs, repair kits, and craft clock production. Size: 8mm. CE/RoHS compliance available.
- Model
- See product title
- Size
- 8mm
- Product Library
- Reference Product Library
- Category Path
- Products > Alarm Clock Movement
Alarm Clock MovementOEM availableWholesale supply
- Diameter 40mm alarm clock movement
- Product Size: ¢ 40 * 8mm
- Quartz small round alarm movement is a second-class movement, life expectancy of 6 to 8 years, All passed CE ROHS certification
- Crystal frequency: 32.768KHz
- Average daily difference: ± 2sec/day at 1.5v, 23 ℃
- Working voltage: DC1.3v to 1.7v
- Operating temperature:-10 ℃ to 50 ℃
- Net weight: 11g
- Battery/Life: LR44/1Years
- Average current consumption: ≤ 25uA at 1.5v
- Ringing volume: Over 70db at 1.5v, 10cm distance
- Alarm accuracy: ± 5 Minutes
- Packing Information: 500pcs, 6.5kg, 0.043m³/carton
For quotation
Share this model page with your quantity, destination country, packaging request, and any matching sample photos. We will confirm compatible options before quoting.
